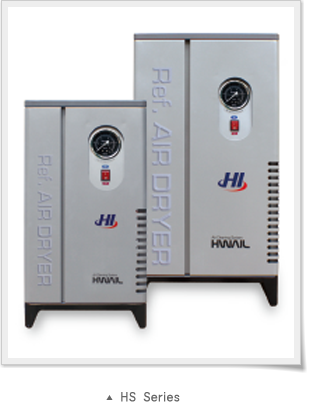

HS Series Refrigerated Air Dryer Air Cooled Type (냉동식 에어드라이어)
Hi Series

에어 콤프레샤로부터 형성된 고온 다습한 압축공기는 냉매가스를 이용하여 열교환기로 흡입된 압축공기내의 포화수증기를 응축하여 만들어진 응축수는 자동드레인 밸브를 통하여 외부로배출을 시켜줍니다. 응축과정에서 발생하는 열은 응축기에 부착된 강력한 펜의 회전을 통하여 냉동식 에어드라이어를 정상적으로 기동 및 제습의 효율을 극대화하기 위하여 냉매가스의 압축온도를 낮춰줍니다.

The hot and humid compressed air formed from air compressor creates condensate in the heat exchanger using the refrigerant gas The condensate is discharged by the automatic drain valve to the outside. The heat generated in the process of condensation makes in the condenser with a powerful pen the compressed refrigerant gas temp. lower by powerful pen rotation in condenser to maximize the efficiency of the dehumidification and safe start-up of Refrigerated Air Dryer.

Specification
Model HS-5 HS-7 HS-10 HS-15 HS-20 HS-30 HS-50 HS-75 HS-100
Flow Capacity
(N㎥/min)		 0.66 1.0 1.45 1.97 2.68 3.96 7.21 11.25 14.69
Applied Comp' (HP) 5HP 7.5HP 10HP 15HP 20HP 30HP 50HP 75HP 100HP
Connect Size (In/Out) 15A 20A 25A 40A 50A
Dimension
WxLxH (mm)		 330x690x525 330x690
x540		 330x780
x550		 330x800
x630		 410x870
x800		 420x1090x980
Electricity (Kw) 0.43 0.44 0.47 0.51 0.81 1.12 1.72 2.43 3.11
(V) AC 220v 1Φ 60Hz
Flreon Gas R-134a R-22
Fluid Compressed Air
Inlet Temp' 2~40 ℃
Ambient Temp' 40 ℃
Max. Pressure 9.9 Kg/㎠
Weight (Kg) 36 37 39 41 52 54 107 144 171
High Pressure(2.94 Mpa)
Model HSH-5 HSH-7 HSH-10 HSH-15 HSH-20 HSH-30 HSH-50 HSH-75 HSH-100
Flow Capacity
(N㎥/min)		 0.66 1.0 4.45 1.97 2.68 3.96 7.2 11.25 14.69
Applied Comp' (HP) 5HP 7.5HP 10HP 15HP 20HP 30HP 50HP 75HP 100HP
Conn, In/Out (Inch) 1/2"(S) 3/4"(S) 1"(S) 1-1/2"(S) 2"(S)
Dimension
WxLxH (mm)		 330x690x525 330x780 330x800
x630		 410x840
x790		 420x1090x980
Electricity (Kw) 0.43 0.44 0.47 0.51 0.81 1.12 1.72 2.43 3.11
(V) AC 220v 1Φ 60Hz
Flreon Gas R-134a R-22
Fluid Compressed Air
Inlet Temp' 2~40 ℃
Ambient Temp' 40 ℃
Max. Pressure 30.0 Kg/㎠
Weight (Kg) 40 41 42 45 55 57 112 151 179

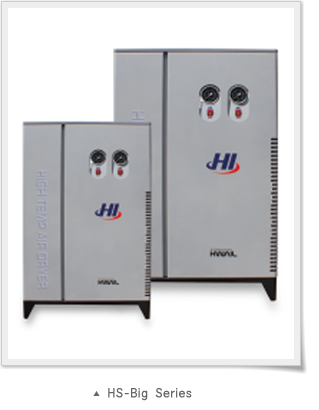

HS-BIG Series Refrigerated Air Dryer Air Cooled Type (냉동식 에어드라이어)
Hi Series

HS-Big Series 에어드라이어는 압축공기가 열교환기내에서 충분히 머물면서 압축공기에서 갖고있는 포화수증기를 최대한 응축하여 배출할 수 있도록 설계제작을 하였습니다.

HS-Big Series air dryer is designed and produced for condensating and discharging maximum saturated water vapor in compressed air with fully circulated heat exchanger air flow.
Specification
Model HS-150 HS-200 HS-250 HS-300 HS-400 HS-500 HS-600 HS-800 HS-900 HS-1000
Flow Capacity
(N㎥/min)		 21.7 30.0 35.0 44.0 56.7 70.0 89.2 115.3 126.0 148.0
Applied Comp' (HP) 150HP 200HP 250HP 300HP 400HP 500HP 600HP 800HP 900HP 1000HP
Connect Size (In/Out) 2-1/2"(F) 3"-4"(F) 4"(F) 6"(F) 8"(F)
Dimension
WxLxH (mm)		 700x1250
x1110		 700x1460x1250 750x1800
x1300		 930x1800
x1550		 1150x2400
x1750		 1200x2500x1900
Electricity (Kw) 3.7 4.3 4.8 7.2 8.3 11.0 17.6 18.2 22.4 24.0
(V) AC 380v 3Φ 60Hz
Flreon Gas R-22
Fluid Compressed Air
Inlet Temp' 2~40 ℃
Ambient Temp' 40 ℃
Max. Pressure 9.9 Kg/㎠
Weight (Kg) 260 349 353 435 579 590 1120 1210 1270 1310
Reamarks
ㆍ 처리공기량은 입구압력 7.0Kg/㎠, 입구온도 38℃, 운전노점 4~10℃ 기준입니다.
ㆍ 고효율 열교환기를 채택하여 제습효과를 극대화시켜줍니다.
ㆍ 열교환기에서 발생된 응축수를 원활한 배출을위한 자동 드레인트랩을 장착하였습니다.
ㆍ 50Hz일 때의 압축공기 처리용량은 0.83입니다.
ㆍ 상기 처리유량표는 압력손실을 고려하지않은 처리유량입니다.
ㆍ 상기제품외 특수제품은 주문에 의해 제작가능합니다.
ㆍ 열 교환기는 한국산업안전보건공단 인증제품입니다. (HS-50부터)
ㆍ 상기사양은 품질개선을 위해 예고없이 변경될 수 있습니다.

ㆍThe standard for flow capacity is based on inlet pressure 7.0Kg / ㎠, inlet temp. 38 ℃, operation dew point 4 ~ 10 ℃.
ㆍ Dehumidifying effect is maximized by adopting high-efficiency heat exchanger.
ㆍ Automatic drain traps are installed to discharge the condensate from heat exchanger smoothly.
ㆍ Compressed air capacity correction factor for 50Hz is 0.83.
ㆍ Processing flow from upper processing flow table is not considered pressure loss.
ㆍ Other special products manufactured by the order are available except upper standard models.
ㆍ Heat exchangers are the Korea Occupational Safety and Health Agency(KOSHA) certified products. (from HS-50)
ㆍ Upper specifications are subject to change without notice to improve the quality
